Project Overview

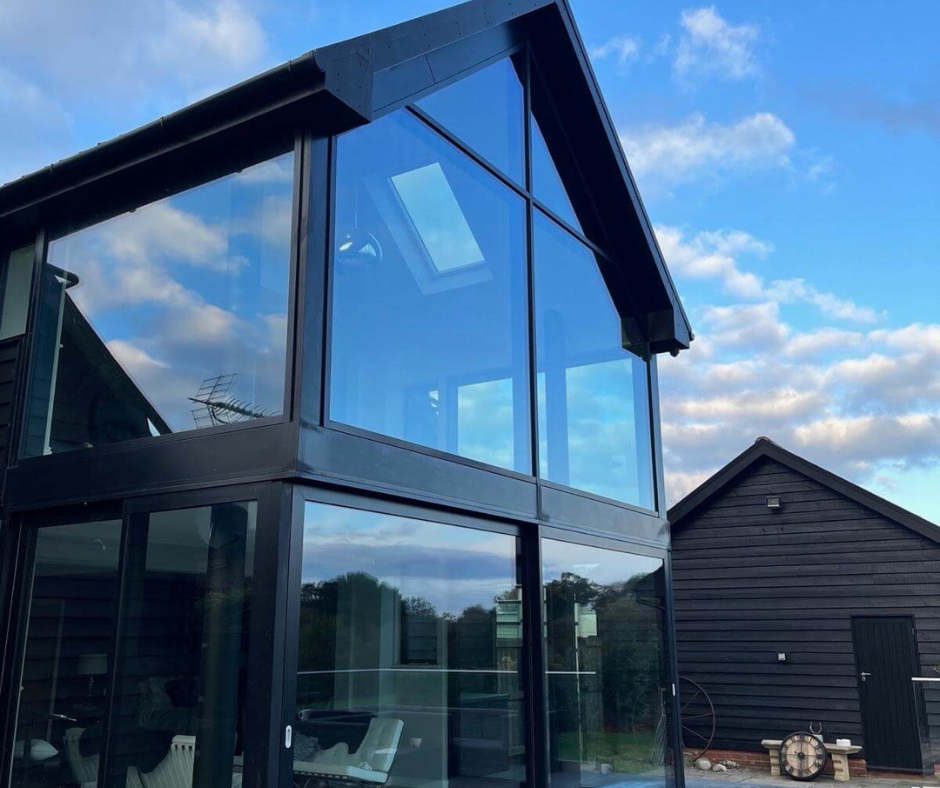

SGC Glass specialises in all residential and commercial glazing across London, Essex and the surrounding areas. For this 2- day project, we travelled to Downham in Essex, for our client who required 8 large, insulated glass units with solar control, toughened safety glass to be replaced.

SGC Glass faced the challenge of replacing 8 large, double-glazed units on different elevations on this large extension to the client’s property. These units were critical for maintaining energy efficiency and the aesthetics of their property.

Challenges Our Team Faced

  1. Access issues: Due to the size, weight and location of the glass being replaced, a spider crane was required to get to the rear of the property, making sure the existing decking was untouched.
  2. Weight and size of the glass: With the largest being the 2 sliding door panes at 2443 mm (about 8.02 ft) by 2134 mm (about 7 ft) and weighing 227kg (about 500.45 lb).
  3. Working conditions: With this fitting taking place in damp conditions in November and with the use of scaffolding and a spider crane, safety was of the utmost importance.

Solutions

To address the challenges our team were facing, our operatives carried out a comprehensive survey of our client’s property that included the supply, installation, removal and disposal of existing units over a 2-day period.

All 8 units that required replacing had the same glass specification; 8mm Coolite SKN 176ii Toughened Safety Glass Outer Pane with a Black Warm Edge Spacer with Argon and 8mm Clear Toughened Safety Glass Inner Pane.

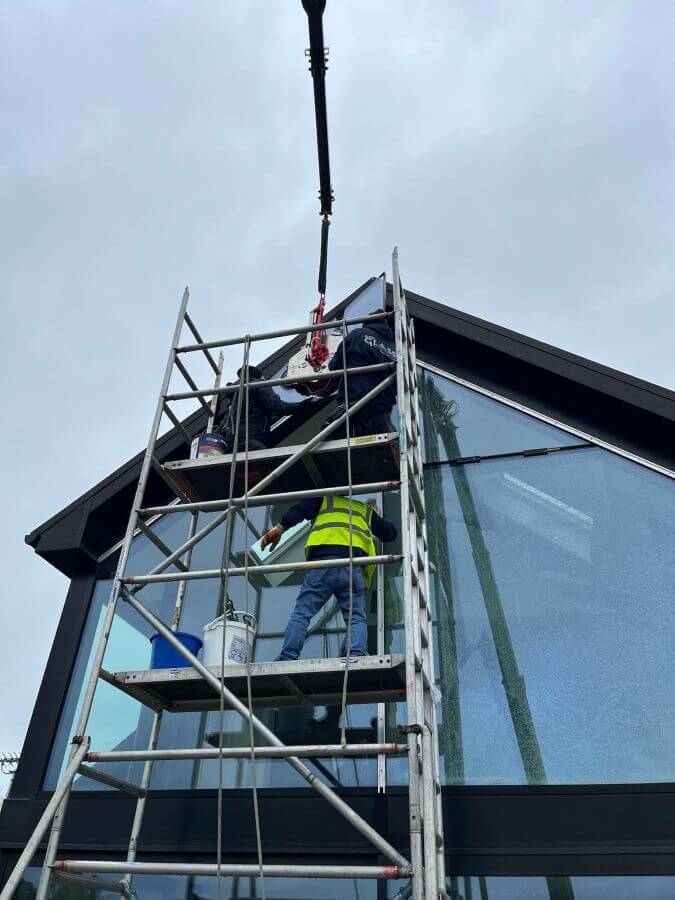

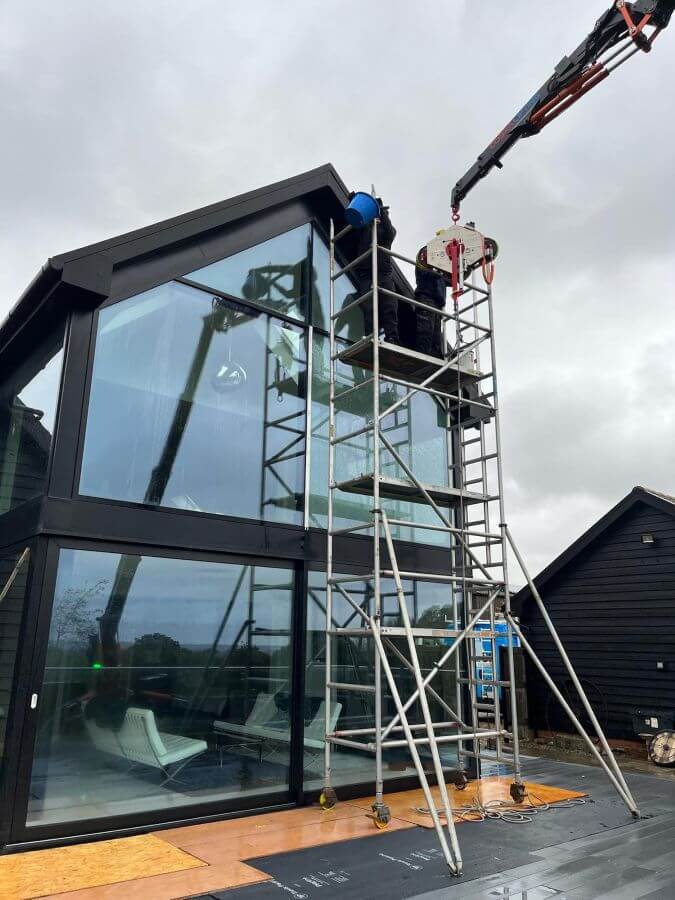

As agreed with our client, an external mobile scaffold tower would be erected to aid our glaziers fitting the higher units. With a spider crane and powered vacuum suction pack, the units were attached and lifted into place. Using lifting aids helped to reduce the risk of injury through manual handling and gave our glaziers more time in those critical moments when setting the large panes of glass. Our customer left a 5 – star Google review, stating “Tom and the guys were Professional from start to finish”
